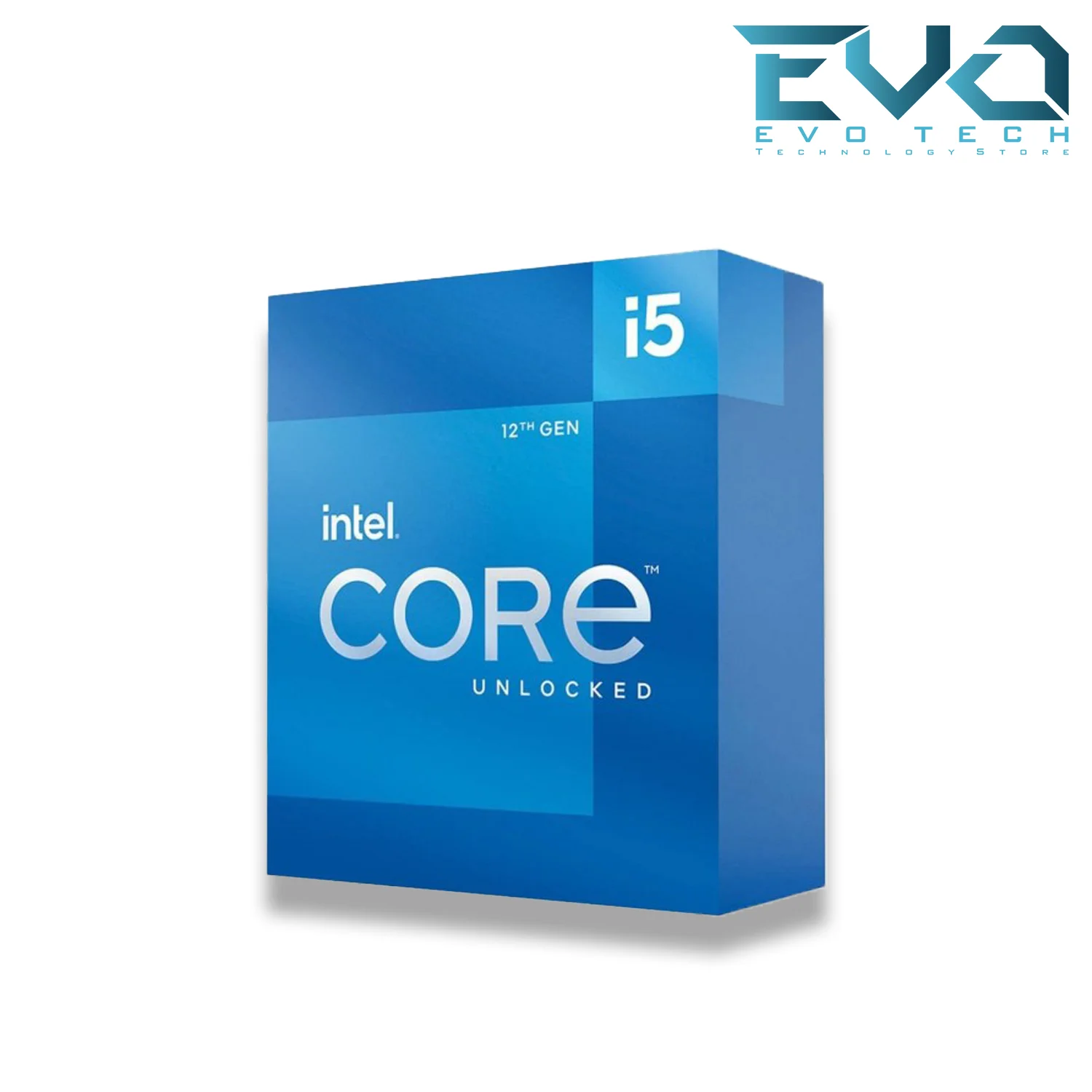

Intel Core i5-12600K Processor 20M Cache, up to 4.90 GHz

Description

CPU Specifications

• Total Cores 10
• # of Performance-cores 6
• # of Efficient-cores 4
• Total Threads 16
• Max Turbo Frequency 90 GHz
• Performance-core Max Turbo Frequency 90 GHz
• Efficient-core Max Turbo Frequency 60 GHz
• Performance-core Base Frequency70 GHz
• Efficient-core Base Frequency 80 GHz
• Cache 20 MB Intel® Smart Cache
• Total L2 Cache 5 MB
• Processor Base Power 125 W
• Maximum Turbo Power 150 W

Memory Specifications

• Max Memory Size (dependent on memory type) 128 GB
• Memory Types Up to DDR5 4800 MT/s
  Up to DDR4 3200 MT/s
• Max # of Memory Channels2
• Max Memory Bandwidth 8 GB/s
• ECC Memory Supported  ^‡Yes

Processor Graphics

• Processor Graphics  ^‡Intel® UHD Graphics 770
• Graphics Base Frequency 300 MHz
• Graphics Max Dynamic Frequency 45 GHz
• Graphics Outpute DP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units 32
• Max Resolution (HDMI)^‡ 4096 x 2160 @ 60Hz
• Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
• Max Resolution (eDP – Integrated Flat Panel) ‡5120 x 3200 @ 120Hz
• DirectX* Support 12
• OpenGL* Support 5
• OpenCL* Support 0
• Multi-Format Codec Engines 2
• Intel® Quick Sync Video Yes
• Intel® Clear Video HD Technology Yes
• # of Displays Supported ^‡4
• Device ID0x4680

Package Specifications

• Sockets Supported FCLGA1700
• Max CPU Configuration 1
• Thermal Solution Specification PCG 2020A
• T_JUNCTION 100°C
• Package Size 0 mm x 37.5 mm
