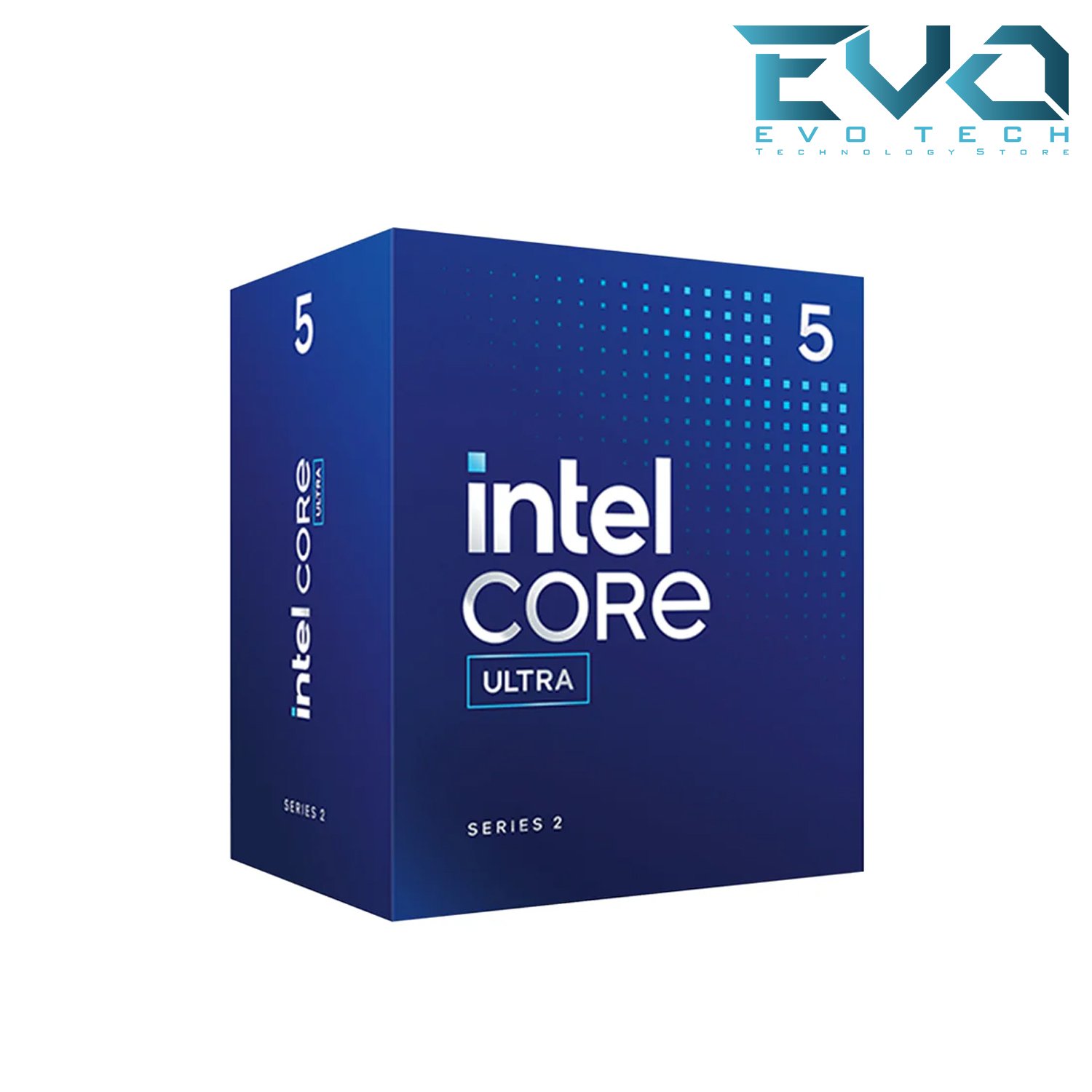

Intel Core Ultra 5 225 Processor – 10 cores (6P + 4E) 10 Threads up to 4.9 GHz LGA 1851 BOX

CPU Specifications

• Total Cores: 10 (6 Performance-cores, 4 Efficient-cores)
• Total Threads: 10
• Max Turbo Frequency: 4.9 GHz
• Performance-core Max Turbo Frequency: 4.9 GHz
• Efficient-core Max Turbo Frequency: 4.4 GHz
• Performance-core Base Frequency: 3.3 GHz
• Efficient-core Base Frequency: 2.7 GHz
• Cache: 20 MB Intel® Smart Cache
• Total L2 Cache: 22 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 121 W
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography: TSMC N3B

Supplemental Information

• Marketing Status: Launched
• Launch Date: Q1’25
• Embedded Options Available: Yes
• Use Conditions: PC/Client/Tablet

Memory Specifications

• Max Memory Size: 192 GB
• Memory Types: Up to DDR5 6400 MT/s
• Max # of Memory Channels: 2

GPU Specifications

• GPU Name: Intel® Graphics
• Graphics Base Frequency: 300 MHz
• Graphics Max Dynamic Frequency: 1.8 GHz
• GPU Peak TOPS (Int8): 4
• Graphics Output: DP2.1 UHBR20, HDMI 2.1 FRL 12GHz, eDP1.4b
• Xe-cores: 2
• Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS), 8K @ 60Hz (HDMI 2.1 FRL)
• Max Resolution (DP): 8K @ 60Hz
• Max Resolution (eDP – Integrated Flat Panel): 4K @ 60Hz
• DirectX Support*: 12
• OpenGL Support*: 4.5
• OpenCL Support*: 3
• Intel® Quick Sync Video: Yes
• # of Displays Supported: 4
• Device ID: 0x7D67
• Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes

NPU Specifications

• NPU Name: Intel® AI Boost
• NPU Peak TOPS (Int8): 13
• Sparsity Support: Yes
• Windows Studio Effects Support: Yes
• AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

• Direct Media Interface (DMI) Revision: 4
• Max # of DMI Lanes: 8
• Intel® Thunderbolt™ 4: Yes
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
• Max # of PCI Express Lanes: 24

Package Specifications

• Sockets Supported: FCLGA1851
• Thermal Solution Specification: PCG 2022C
• Max Operating Temperature: 105 °C

Advanced Technologies

• Intel® Volume Management Device (VMD): Yes
• Intel® Gaussian & Neural Accelerator: 3.5
• Intel® Thread Director: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Turbo Boost Technology: 2.0
• Intel® 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes

Security & Reliability

• Intel® Standard Manageability (ISM): Yes
• Intel® Control-Flow Enforcement Technology: Yes
• Intel® AES New Instructions: Yes
• Secure Key: Yes
• Intel® Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel® OS Guard: Yes
• Intel® Boot Guard: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® VT-x with Extended Page Tables (EPT): Yes
