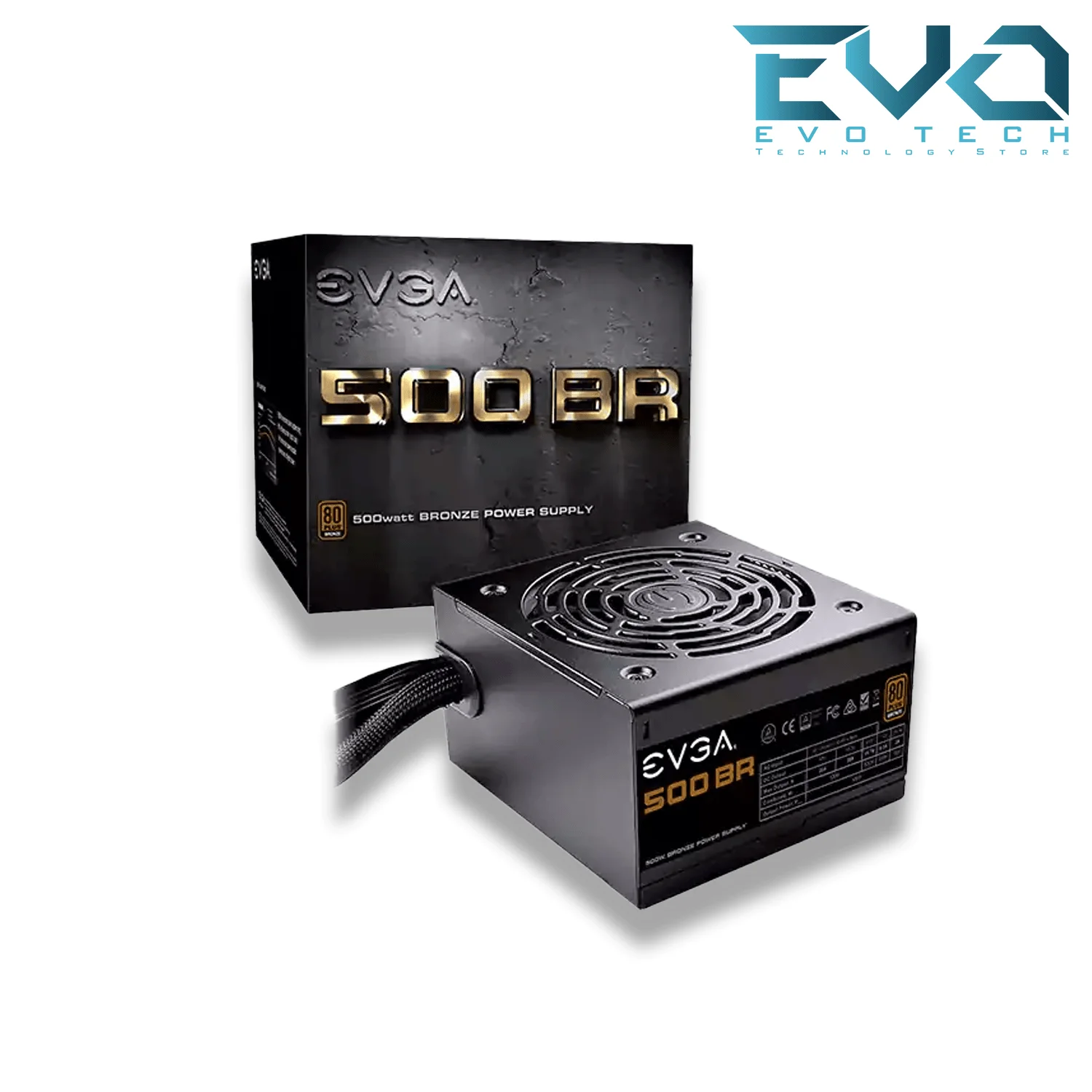

EVGA 500 BR 80+ BRONZE 500W Power Supply 100-BR-0500-K2
Out of stock
Quiet and Intelligent Auto Fan for near-silent operation
80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Active Power Factor Correction
Single +12V. Rail
DC-DC Converter improves 3.3V/5V stability
Description
| ATX Cable | 1x 550mm |
| EPS Cable | 1x 600mm |
| PCIE Cable | 1x 550mm, 670mm |
| SATA Cable | 2x 450mm, 570mm, 690mm |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm + 810mm (Floppy) |
| AC Power | 1x 1200mm (m) |
| Modular Cable Type | No |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIE | 2x 8pin (6+2) |
| SATA | 6x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |
POWER SPECS
| AC Input | 100 - 240 VAC, 8/4A, 50 - 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20A | 41.7A | 3A | 0.3A |
| 500W | |||||
| 120W | 500W | 15W | 3.6W | ||
| Total | 500W @ +30C | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 30° C |
| Japanese Capacitors | No |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 4 lbs |
| Size | 85mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 120mm Long Sleeve Bearing |
