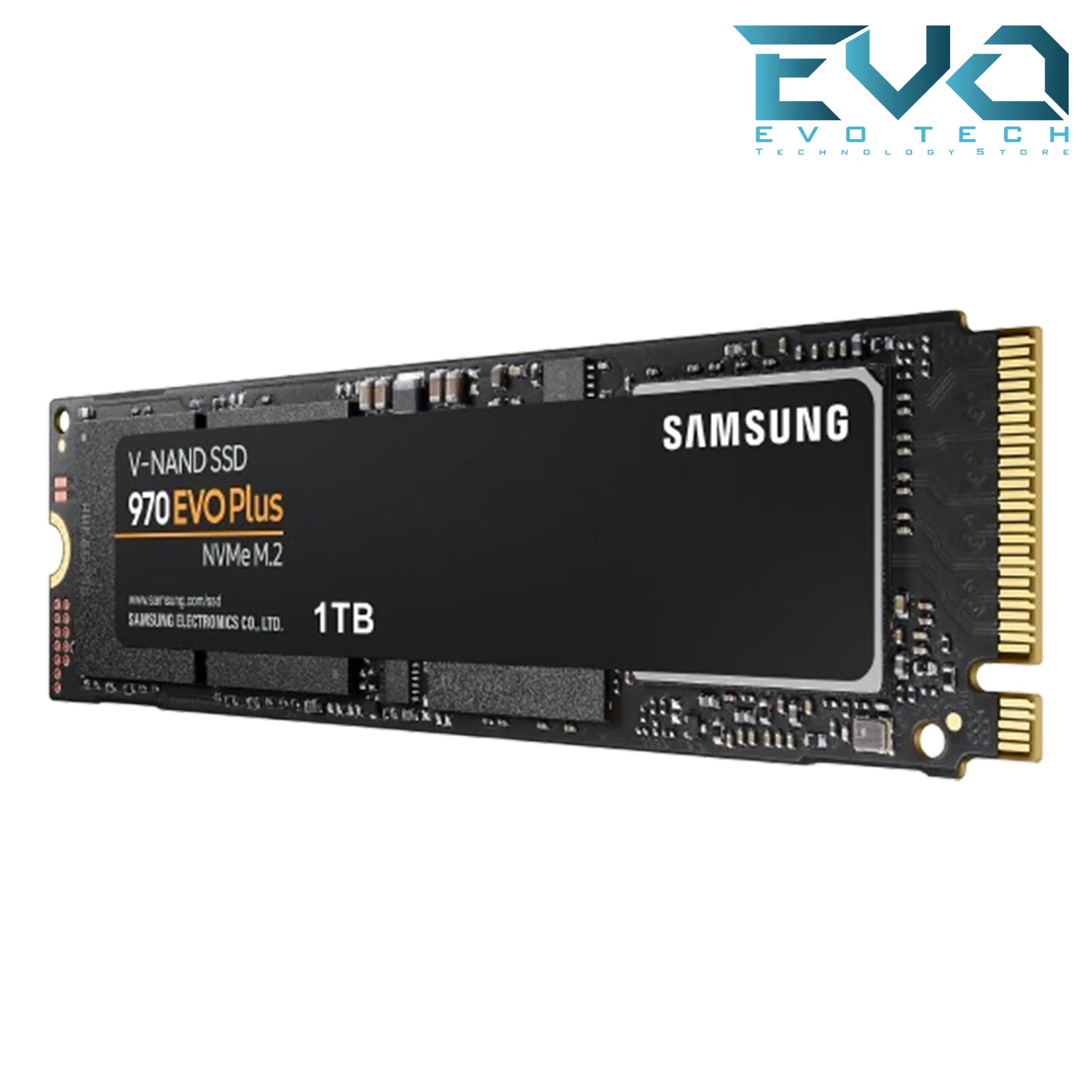

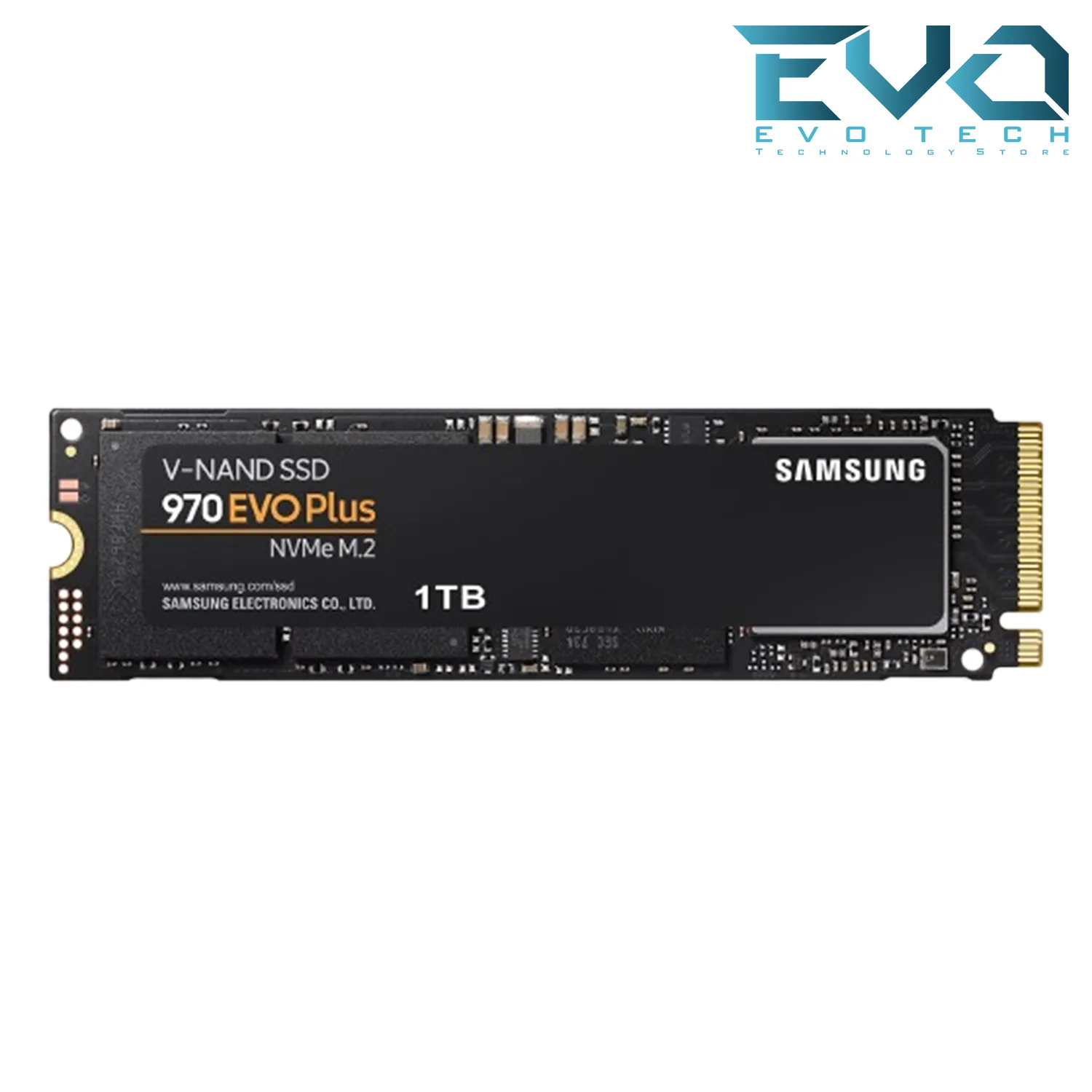

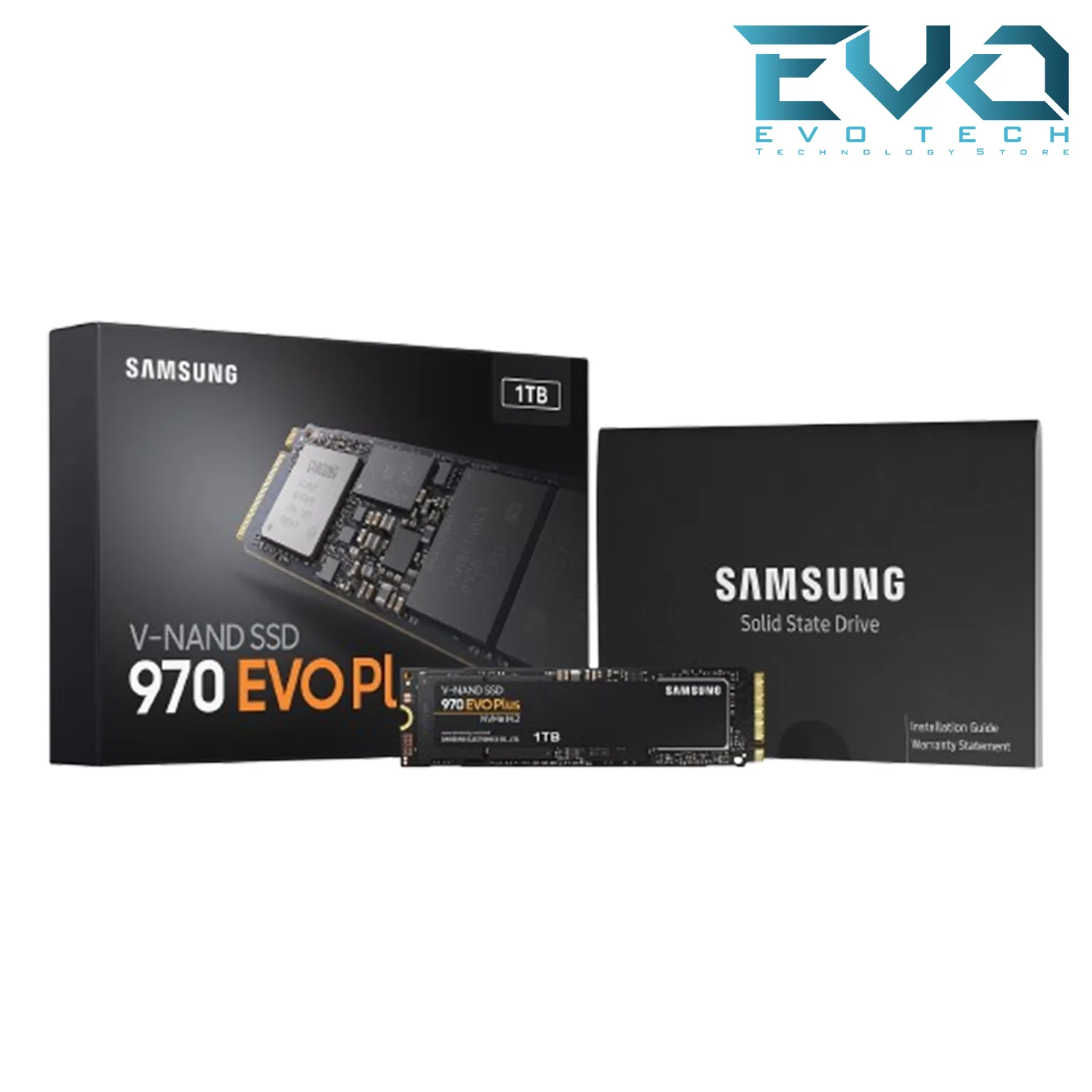

Samsung 970 Evo Plus 1TB NVMe M.2

Out of stock
Category:

Samsung 970 Evo Plus 1TB NVMe M.2

Description

Always Evolving SSD

The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe™ bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.

*1GB=1,000,000,000 bytes by IDEMA/ A certain portion of capacity may be used for system file and maintenance use, so the actual capacity may differ from what is indicated on the product label.



Level Up Performance

The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven in-house controller and Intelligent TurboWrite boost.

*Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service centre.



Design Flexibility

The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.

Design Flexibility



Exceptional Endurance

The new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.

* TBW: Terabytes Written * Warrantied TBW for 970 EVO Plus: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model, 1,200 TBW for 2TB model. * 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.

Exceptional Endurance



Unparalleled Reliability

Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.

Unparalleled Reliability



Samsung Magician

Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.

Samsung Magician

Specifications

  • ApplicationClient PCs
  • InterfacePCIe Gen 3.0 x 4, NVMe 1.3
  • Dimension (WxHxD)80.15 x 22.15 x 2.38 (mm)
  • WeightMax 8.0 g Weight
  • Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
  • Sequential WriteUp to 3,300 MB/s * Performance may vary based on system hardware & configuration

General Feature

  • ApplicationClient PCs
  • Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
  • Form FactorM.2 (2280)
  • InterfacePCIe Gen 3.0 x 4, NVMe 1.3
  • Dimension (WxHxD)80.15 x 22.15 x 2.38 (mm)
  • WeightMax 8.0 g Weight
  • Storage MemorySamsung V-NAND 3-bit MLC
  • ControllerSamsung in-house controller
  • Cache MemorySamsung 1GB Low Power DDR4 SDRAM

Special Feature

  • TRIM SupportSupported
  • S.M.A.R.T SupportSupported
  • GC (Garbage Collection)Auto Garbage Collection Algorithm
  • Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
  • WWN SupportNot supported
  • Device Sleep Mode SupportYes

Performance

  • Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
  • Sequential WriteUp to 3,300 MB/s * Performance may vary based on system hardware & configuration
  • Random Read (4 KB, QD32)Up to 600,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Write (4KB, QD32)Up to 550,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Read (4 KB, QD1)Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Write (4 KB, QD1)Up to 60,000 IOPS * Performance may vary based on system hardware & configuration

Environment

  • Average Power Consumption (system level)* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
  • Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
  • Allowable Voltage3.3 V ± 5 % Allowable voltage
  • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
  • Operating Temperature0 – 70 ℃ Operating Temperature
  • Shock1,500 G & 0.5 ms (Half sine)

Accessories

  • Installation KitNot Available

Software

  • Management SWMagician Software for SSD management
