Seasonic CORE GX-650 650W 80+ Gold Full Modular Power Supply

Out of stock
80 PLUS® Gold certified
Fully Modular
Tight Voltage Regulation
S2FC – Smart and Silent Fan Control
DC to DC Converter Design
105 °C Japanese Capacitor

Description

CORE-GX-650

Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control Smart and Silent Fan Control
Fan Bearing Sleeve Bearing
Life Expectancy 25,000 hours at 40 °C, 15 % – 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, OCP, OTP, SCP, UVP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 7 Years
Power Output
AC Input Voltage: 100 V – 240 V
Current: 9 – 4.5 A
Frequency: 50 Hz – 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 54 A 0.3 A 3 A
100 W 648 W 3.6 W 15 W
Total continuous power 650 W

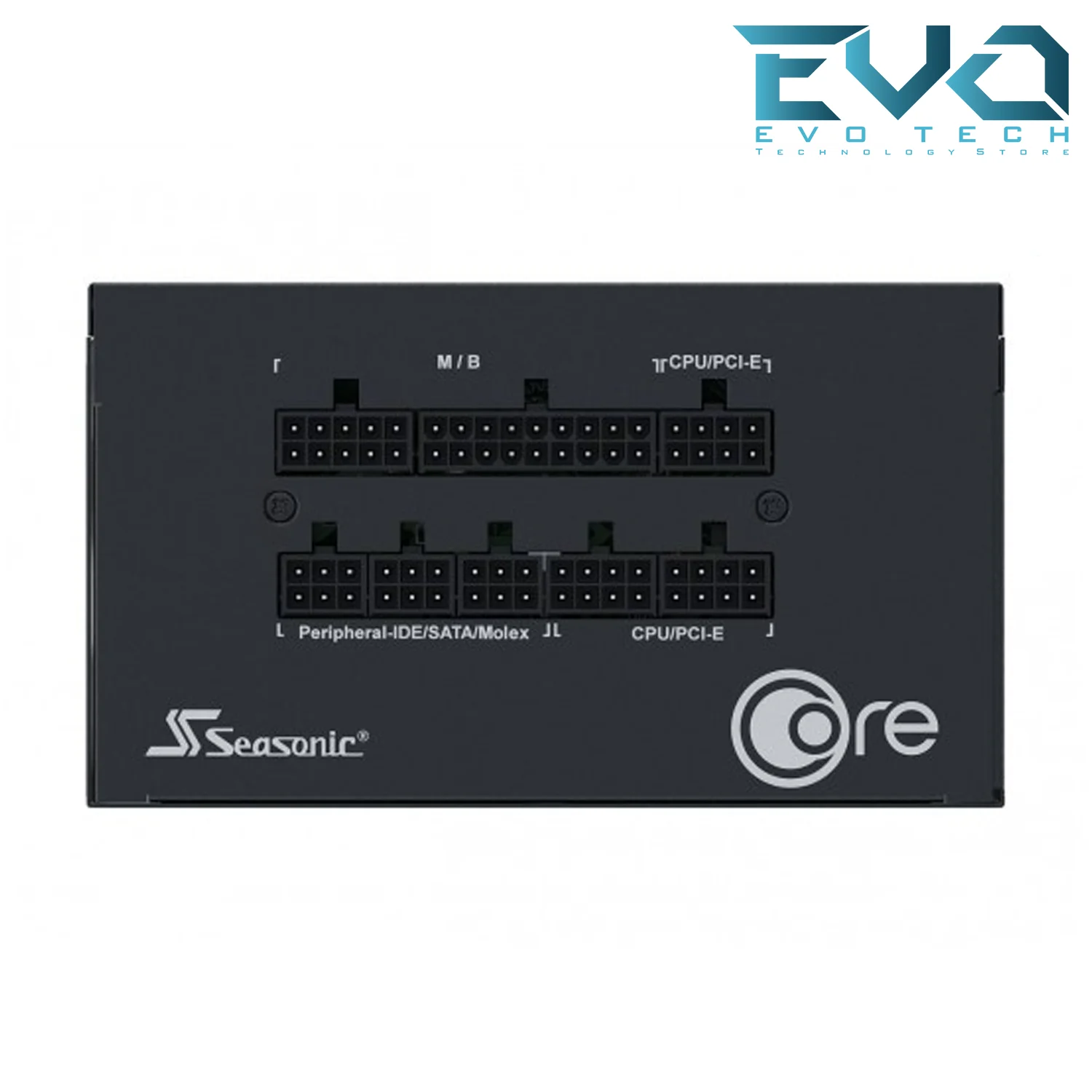

CABLES

CORE-GX-650

Cable type Connector(s) per cable Total length (mm) Number(s) of cable(s) included
MB-610 MB (24/20 pins) 1 610 1
CPU-650 CPU (8/4 pins) 1 650 1
PCIe-750-2x PCIe (8/6 pins) 2 750 2
PCIe-750-1x PCIe (8/6 pins) 1 750 0
SATA-810-4x-90 SATA 4 810 1
SATA-800-4x-180 SATA 4 860 1
SATA-760-4x-90 SATA 4 760 0
SATA-700-2x-90 SATA 2 700 0
SATA-570-2x-180 SATA 2 570 0
SATA-470-2x-180 SATA 2 470 0
SATA-450-2x-180 SATA 2 450 0
Molex-690-3x Molex 3 690 1
Molex-470-2x Molex 2 470 0
Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 0
Molex-to-FDD-101 Molex to FDD Adapter 1 101 0

CORE-GX-650

Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control Smart and Silent Fan Control
Fan Bearing Sleeve Bearing
Life Expectancy 25,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, OCP, OTP, SCP, UVP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 7 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 9 - 4.5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 54 A 0.3 A 3 A
100 W 648 W 3.6 W 15 W
Total continuous power 650 W

CABLES

CORE-GX-650

Cable type Connector(s) per cable Total length (mm) Number(s) of cable(s) included
MB-610 MB (24/20 pins) 1 610 1
CPU-650 CPU (8/4 pins) 1 650 1
PCIe-750-2x PCIe (8/6 pins) 2 750 2
PCIe-750-1x PCIe (8/6 pins) 1 750 0
SATA-810-4x-90 SATA 4 810 1
SATA-800-4x-180 SATA 4 860 1
SATA-760-4x-90 SATA 4 760 0
SATA-700-2x-90 SATA 2 700 0
SATA-570-2x-180 SATA 2 570 0
SATA-470-2x-180 SATA 2 470 0
SATA-450-2x-180 SATA 2 450 0
Molex-690-3x Molex 3 690 1
Molex-470-2x Molex 2 470 0
Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 0
Molex-to-FDD-101 Molex to FDD Adapter 1 101 0
